Optimal residential solution

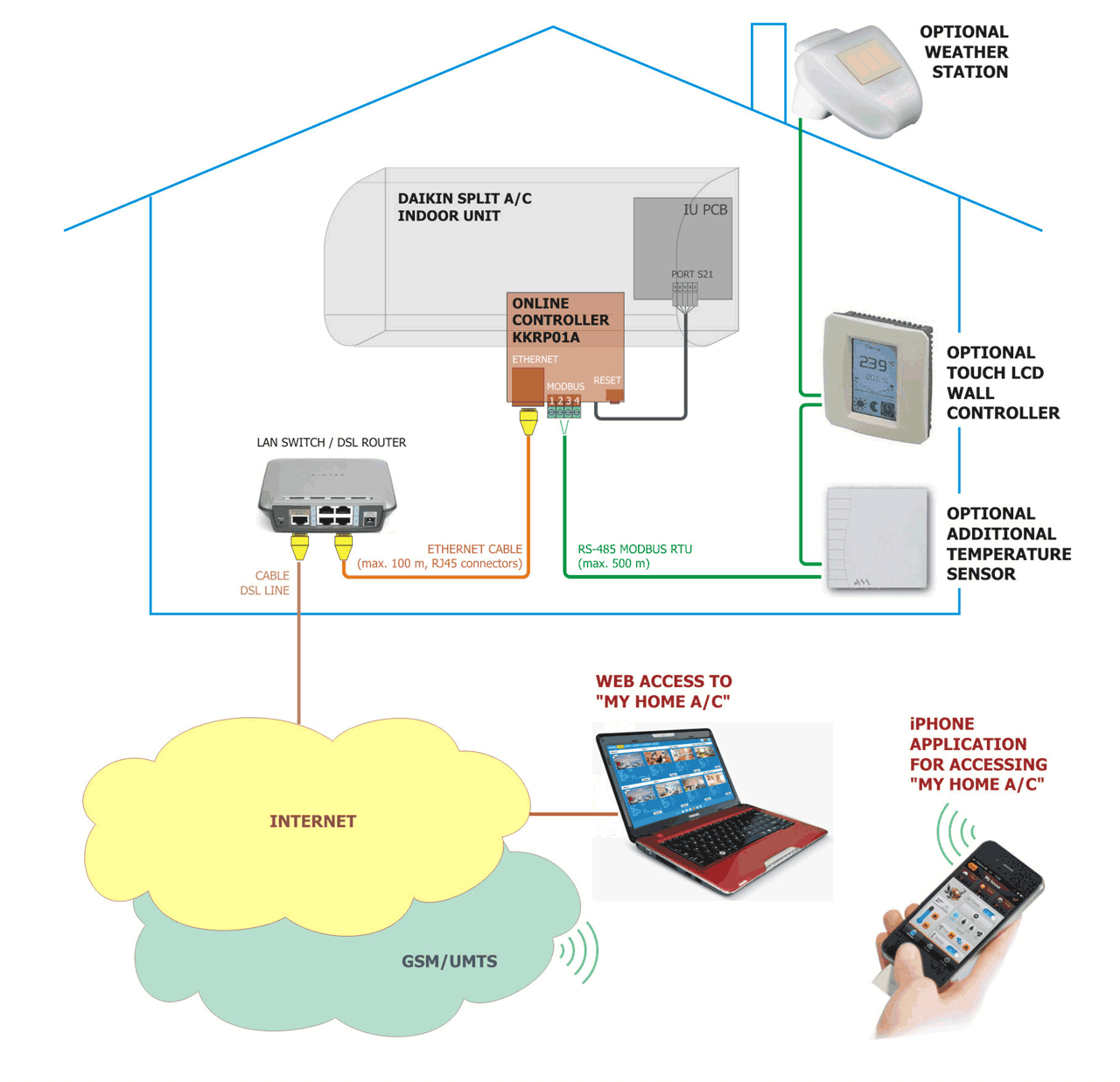

OnlineController offers remote control of each air conditioning units via the Internet (HTTP protocol) from anywhere (work, hotel, business trip, etc.). Simple and user friendly screen enables to manage your air conditioner also from your mobile phone, when any Internet connection availlable, (from hollidays, from car, etc.) via GSM operator´s Internet or data services.

Comfort benefits:

• Remote control enables to switch on and fit up the temperature before arrival
• Remote parental control of well-balanced temperature setting, when children are home alone
• Unique tool for paralyzed and disabled people, they can control air conditioning on their own by specialized computers
• Enables to secure the proper air conditioning for home pets and flora, even if nobody is at home
• Online check of your air conditioner status, malfunction detection with Error Code helps to speed up time neccessary for the repairment
• 3G/WiFi configuration for objects without cable Internet connectivity (lodges, cottages)

Other benefits:

• OnlineController doesn't forget to switch off the air conditioner, when leaving home or office
• Temperature limitation avoids of excessive settings
• User can switch ON the A/C before the arrival using SmartPhone.
• User comes to pre-cooled space and he didn't waste extra energy unlike using a time

For components details see OnlineController portfolio.pdf

How to buy?

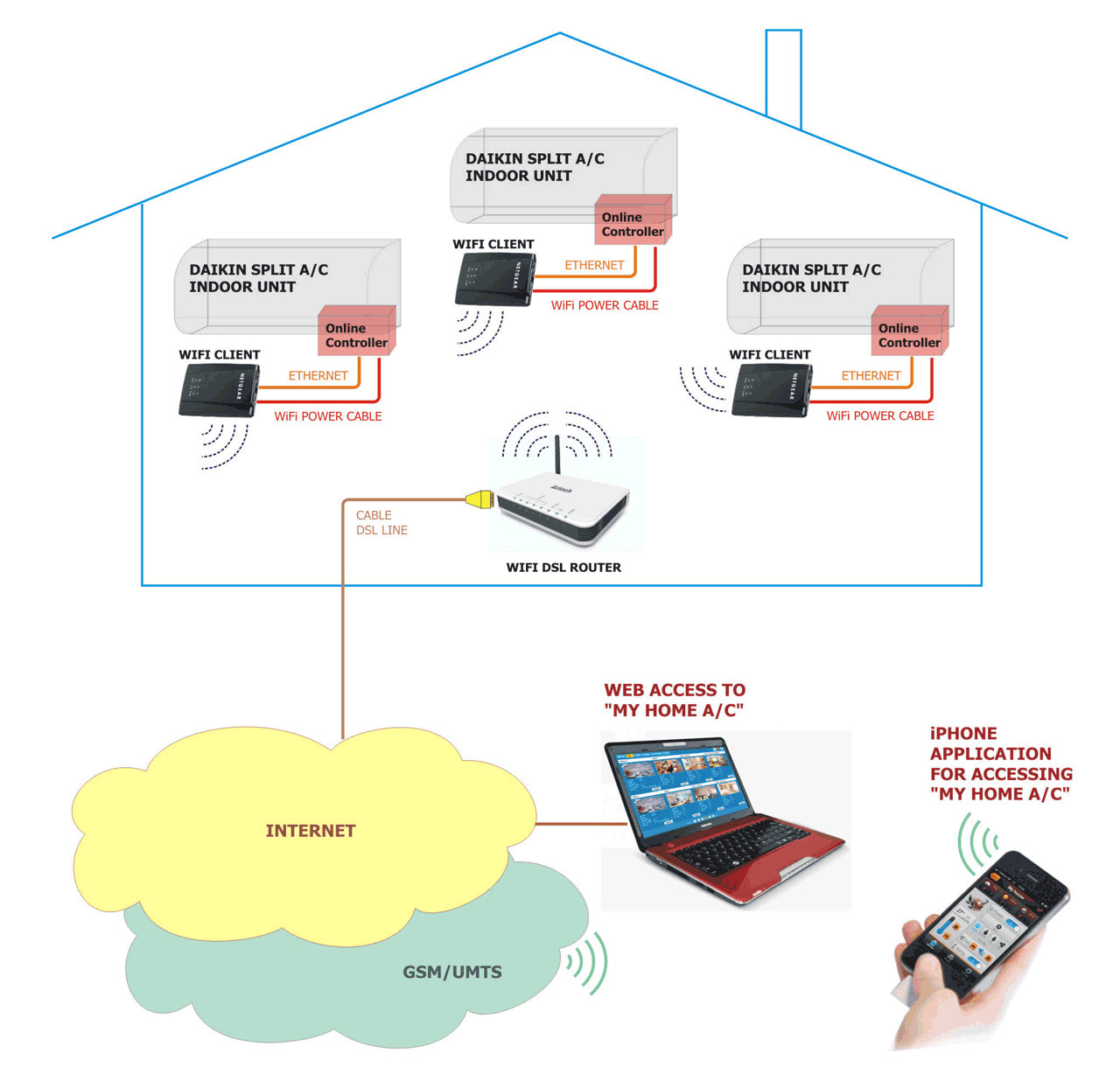

WiFi possibilities

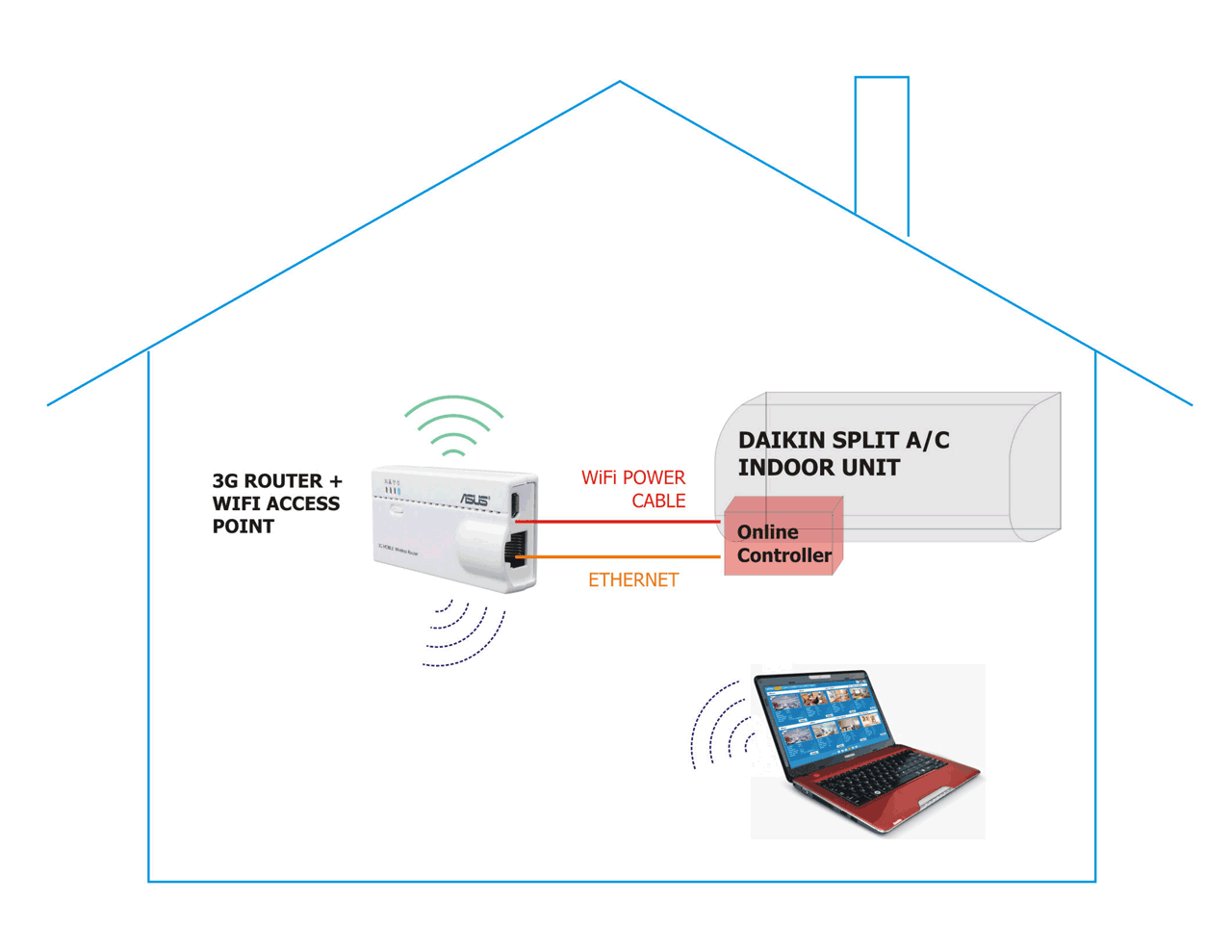

3G/WiFi configuration

Heating under control - corporate solution

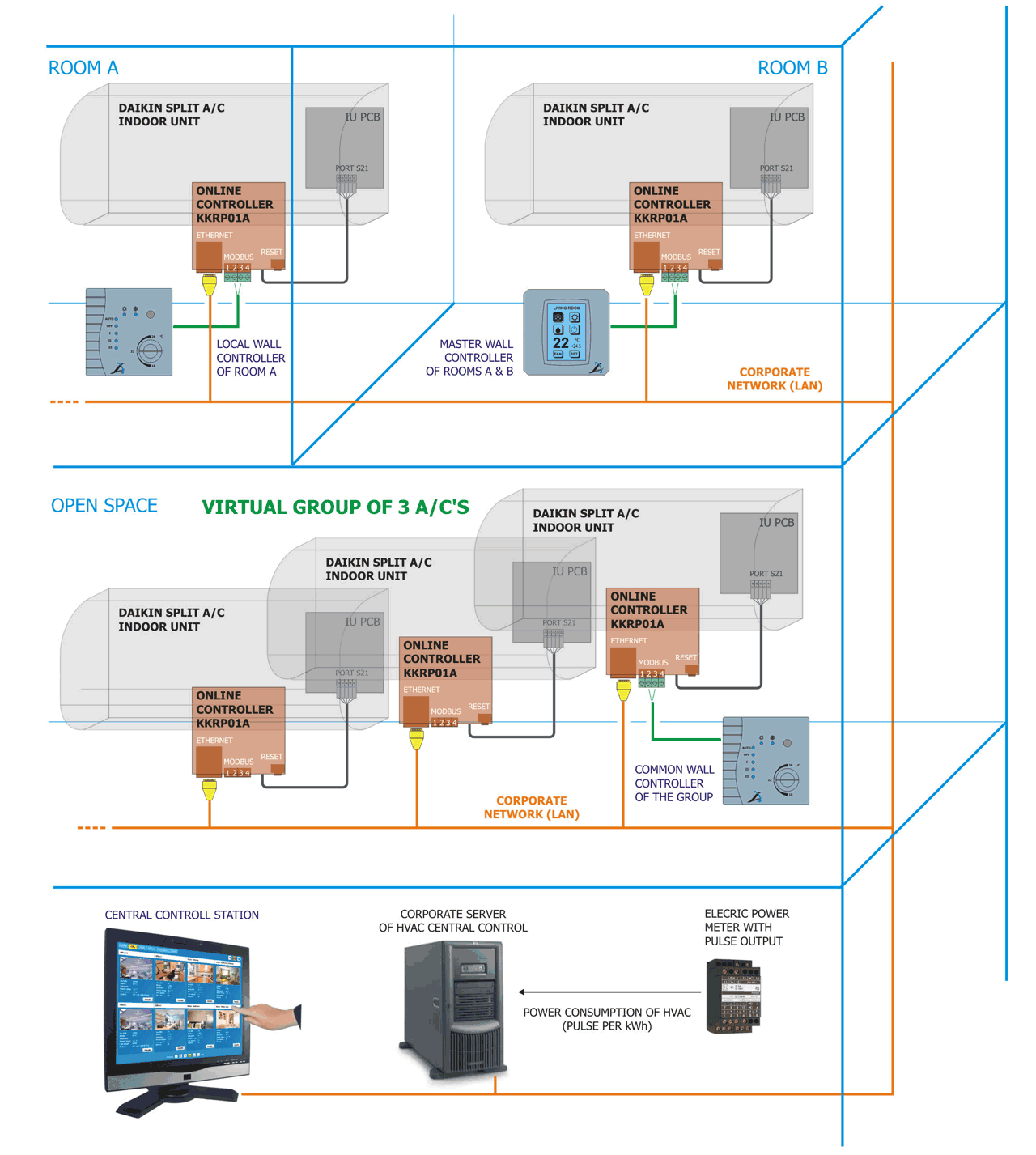

Complex management of high number of air conditioning systems of industry object, business centers, etc. With required number of systems, indoor and outdoor units and needed number of OnlineController modules. Network of air conditioning system is a part of existing or newly-formed LAN network and it is managed by central server.

Employees (users) connect at this server by login/password and remote specific air conditioning unit or system of units via intranet/Internet by assigned access privileges. Also it´s possible to combinate remote control from mobile phone via GSM data services but always through central server.

Centralized control benefits:

• Remote monitoring make clients feeling safe, supresses a fear from new technologies, especially when heat pump operates as a monovalent source
• Immediate malfunction report speeds up the repairment. Error details eliminate the need of error detection on place, enable servician to get ready and repair the system at first visit
• Online Controller keeps heating mode and blocks other modes during winter. As a primary heating system, heat pump needs to avoid of confusion, sabotage or child thoughtlessness
• When the space is for longer time unattended (f.e. holiday), remote decrease of setpoint remarkably economizes energy costs. Reheating of house closely before arrival by remote control is more flexible than fixed weekly scheduler
• In cases, where central Building Management System (BMS) controls all HVAC devices using a network based on Modbus RTU protocol, the OnlineController can work as adaptor for connecting Daikin split series IU's to Modbus network

Other benefits

• Blocking contrary modes operation when several independent systems operate in the same space
• Temperature limitation avoids of excessive settings
• Possibility of creating and recreating of air conditioning zones and groups exactly according to rooms disposition (open-space with more units. etc.) it allows intelligent and effective indoor unit management
• By using visualization software there is possible to make graphic extension with complete information about monitoring parameters or A/C units status
• Billing implementation for measuring and quantifying real usage of energies, costs savings, etc In cases, where central Building Management System (BMS) controls all HVAC devices using a network based on Modbus RTU protocol, the OnlineController can work as adaptor for connecting Daikin split series IU's to Modbus network

For components details see OnlineController portfolio.pdf

How to buy?

Cooling of sensitive technologies - corporate solution

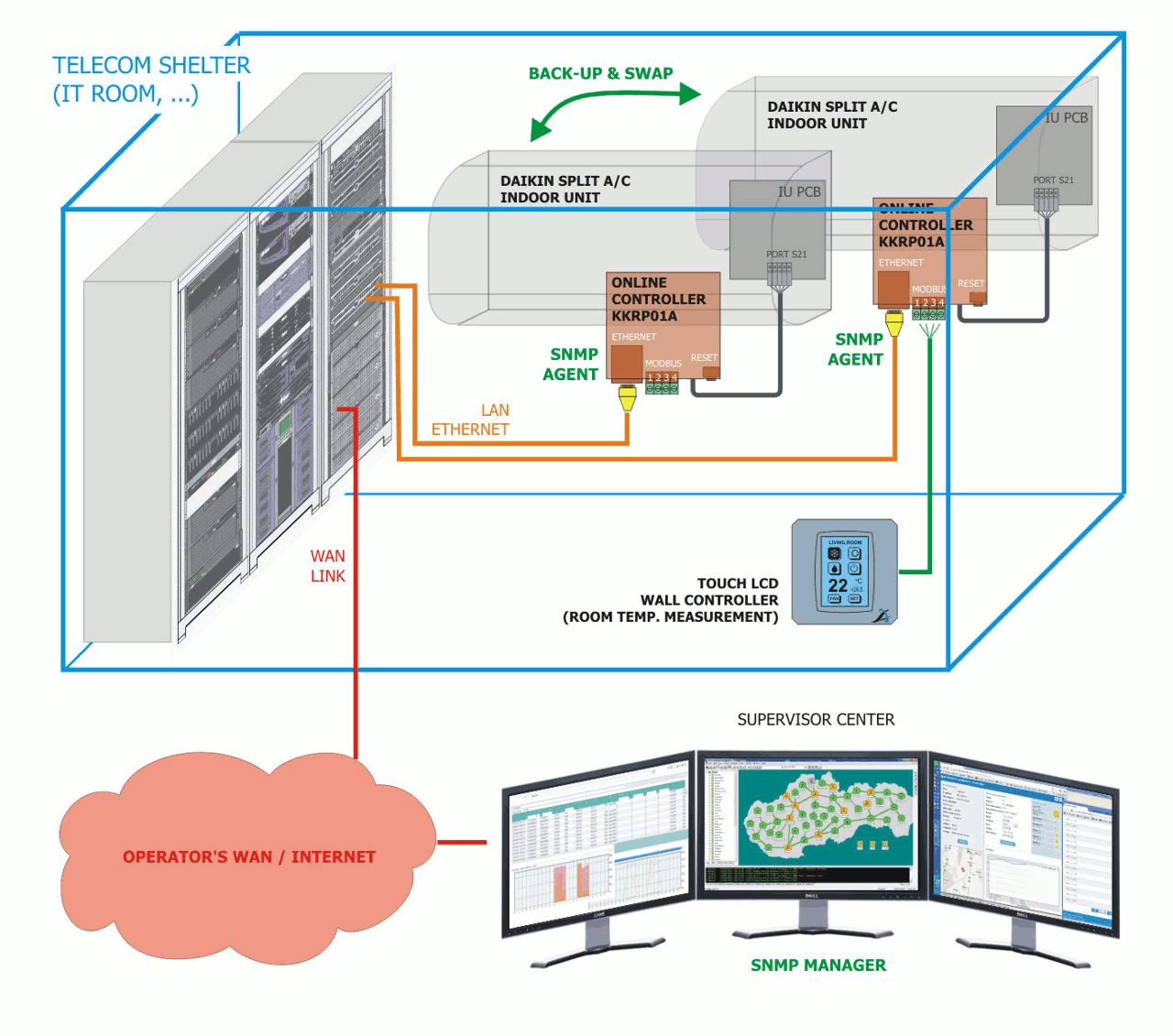

Cooling of sensitive technologies is important for rooms/objects of power industry, military and security departments, telecom operators, etc. By adding OnlineController, which supports standard protocols and application, there is possible to integrate air conditioning equipment, which allows to monitor all parameters, control of components and fault management together with other telecomminucate equipments in the network.

Benefits:

• Remote monitoring of air conditioning systems enables safe operation of sensitive devices
• Targeted to sector if IT, Telecom, Measurement technologies
• No personal attendance required to know temperature conditions
• Detailed online information about A/C malfunction in selected language
• Regular temperature check, warning when out of limit
• Swapping or N+1 configuration for high importance setting

For components details see OnlineController portfolio.pdf
